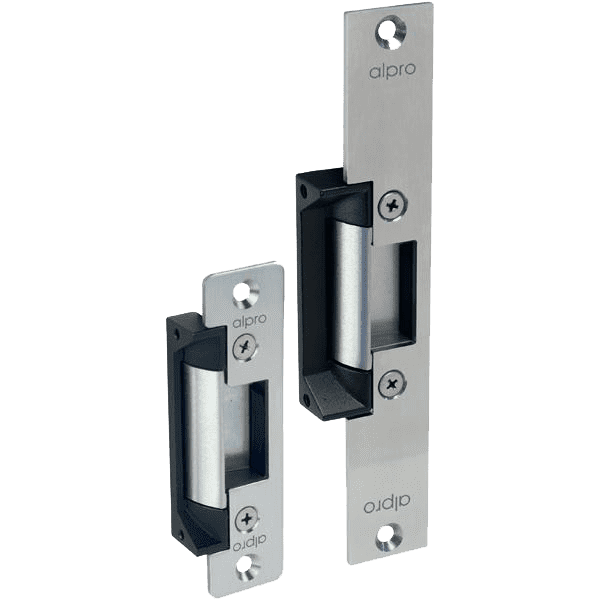

Electric ANSI Strikes AL110
The AL110 electric strike series is an ANSI style security strike complete with stainless steel short or long faceplates for use in metal or timber door applications.The electric door strike is designed with a moveable stainless steel jaw, which when an electrical current is applied either opens or remains in the locked position. In this way the traffic using the door can be rigorously controlled. Monitored and lipless versions available.
Features Include
- High Holding Force
- Simple Fail Safe/Fail Secure Changeover
- Weather Resistant
- Easy Installation
- 6 Year Guarantee
- Specification
- Order info
- Documents
- FAQs
- Videos
12/24v Selectable
Stainless Steel Face Plate and Striker
Compact Cast Aluminium Body
35mm overall depth
Deep Jaw
Accepts 13mm latch bolt
Low Current Consumption
200mA - 12v DC continuous (±15%)
100mA - 24v DC continuous (±15%)
Simple Fail Safe/Fail Secure Changeover
Easy Installation
Stick on/Peel off template
Monitored and lipless versions available
Weather Resistant
IP56 Protection as Standard
Options
ANSI short and ANSI long faceplates
Extension lips – 15, 25, 50 and 75mm (pre-drilled strike body)
Spares
Replacement changeover pin
Approvals
EN61000-6-3:2007
EN50130-4:1995 + A1
EN50130-4:1998 + A2
EN50130-4:2003
AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation with AC voltages.
The sounder can be set for either buzzing or silence with both AC and DC voltages.
The IEC RM1 unit is continuously rated – max 1 amp.
-
Brand:Alpro
