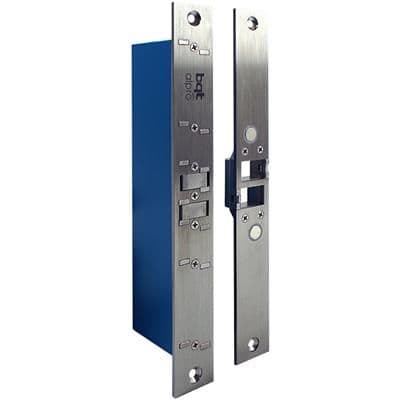

The ALP200H (Cobalt YD30) electronic side load lock is typically used in commercial doors and controlled by access control systems.
This electronic side load lock can be used in a simpler system where just controlling access to a single door can be implemented with a stand-alone access system.
Door Alignment
Door misalignment of up to +/- 8mm is automatically corrected
Side Load Release
The door can have in excess of 100kg being applied and it will still release instantly when requested
Simple Configuration
Convert from fail safe to fail secure by repositioning a single jumper
High Security
Automatic deadlocking
10,000N holding force (1,000kg)
Two, 10mm thick stainless steel bolt pins
Electrical Specification
Input voltage from 12vDC-24vDC
Less than 50mA standby current
Reverse polarity and transient protection
Multiple attempts to lock
Dual Monitoring
Door and bolt position monitors
Versatile Installation
Mortice mount horizontally or vertically, on double action doors
Surface mount using the ALP200H accessories, including mounting onto glass
Physical Dimensions
255mm (L) x 30mm (W) x 51mm(D)
Certifications
EN61000-6-1: 2007
EN61000-6-3: 2007 + Amendment 1: 2001
FCC Part 15, subparts A and B
-
Brand:Alpro
