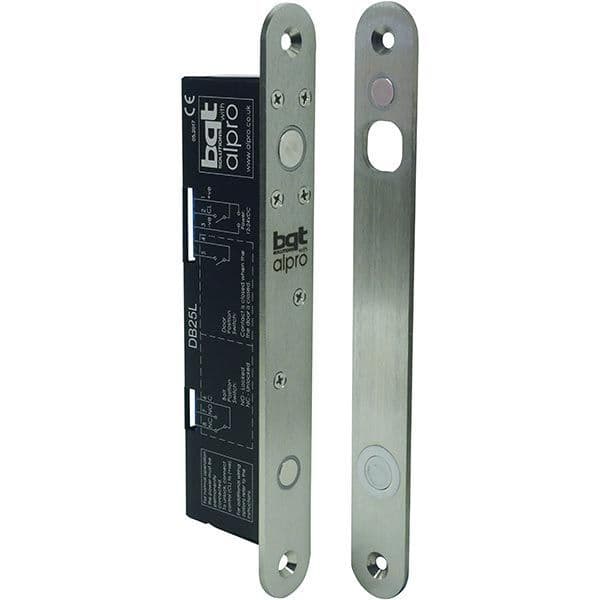

Dual Action
Magnetic latch on strike plate to capture the door deadbolt to secure the door.
High Physical Security
Holding force 1,000kg - automatic deadlocking.
Bolt throw 16mm.
Versatile Installation
Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.
Slimline Dimensions
210mm(L) x 25mm(W) x 42mm(D).
Back box 164mm(L) x 22mm(W) x 39mm(D).
Faceplates
Radius.
Multiple Voltage Input
Any voltage from 12v DC -10% to 24v DC +15%. Complete with built in transient and reverse polarity protection and continuously rated solenoid.
Low Current Consumption
Volts Current - Activate Current - Hold (after 200ms)
12vDC 1100mA 160mA
24vDC 1000mA 90mA
Dual Monitoring
Bolt and Door position switches
Built-in Access Control Module
Automatic unlock period - 9 seconds.
Multiple auto relock function - PTL.
Multiple unlock function - PTO.
Accessories
Stainless steel surface mounting kit.
Approvals
EN61000-6-1:2007
EN61000-6-3:2007
-
Brand:Alpro
