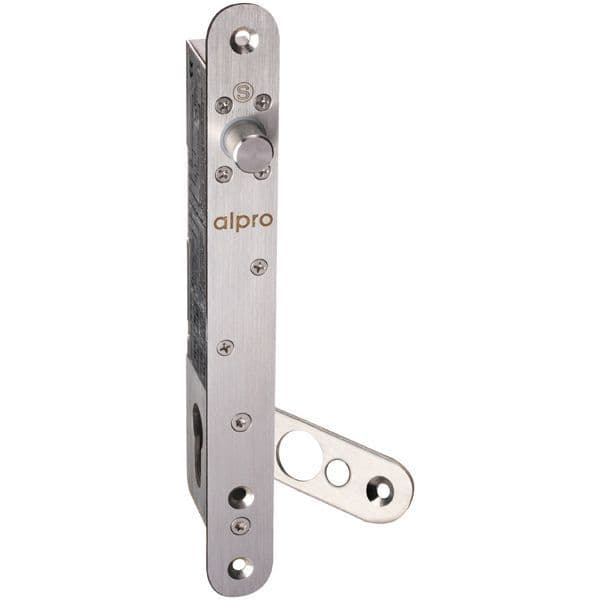

Electric Solenoid Bolts EB250 & EB250KO

The Alpro EB250 electric solenoid bolt & EB250KO key override solenoid bolts allow for both remote access and exit control of most timber and metal doors. It is also suitable for sliding or swing, single or double action operations. It can be fitted in the frame or in the door. With concealed mortise mounting and slimline styling the bolts suit most narrow stile aluminium doors and narrow profile joinery.

Features include

• High Physical Security
• Robust Construction
• Auto Relock Function
• Multiple Voltage Input
• 3 Year Guarantee
• Specification
• Order info
• Documents
• FAQs

High Physical Security
Holding force 1,000kg - Bolt throw 14mm,

Robust Construction
All stainless steel bolt of 14mm diameter, linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.

Versatile Installation
Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Slimline Dimensions
EB250 210mm(L) x 25mm(W) x 43mm(H)
Back box 160mm(L) x 22mm(W) x 40mm(H)
EB250KO 230mm(L) x 25mm(W) x 43mm(H)
Back box 180mm(L) x 22mm(W) x 40mm(H)

Faceplates
Radius

Multiple Voltage Input
Any voltage from 12v DC/24v DC. Complete with
built in transient and reverse polarity protection
and continuously rated solenoid.

Low Current Consumption
Volts    Current - Activate        Current - Hold
12vDC    740mA                120mA
24vDC    120mA                70mA

Auto Relock Function
Can be set to 0, 3, 6 or 9 seconds (DIP switch)

Monitoring
EB250 - Dual monitoring - Door position switch/bolt position switch
EB250KO - Triple monitoring - Door position switch/bolt position switch/key
position switch
