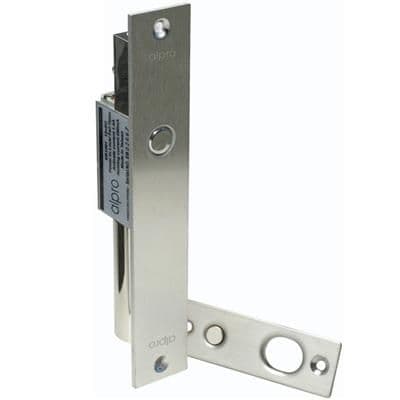

Electric Bolt EB1001

The Alpro EB1001 Electric Bolt allows for remote access and exit control of most timber and metal doors. It is suitable for sliding or swing, single and double action
operations.

It can be fitted in the frame or in the door and comes with plug in LED Bolt indicator as standard.

Features Include

• Concealed mortise mounting
• Auto Relock Function
• Door & Bolt position sensor
• Versatile Installation
• 3 Year Guarantee
• Specification
• Order info
• Documents
• FAQs
• Videos

Function
Fail Open/Power to Lock

Construction
Stainless steel bolt (15mm diameter and throw) and strike plate provide secure locking. A stainless steel dress plate is provided to cover the brushed aluminium faceplate.

Electrical Features
Voltage 12v DC±15%
Activating current 1000mA
Holding current 250mA
Continuously rated solenoid
Fully protected against transient & reverse
polarity

Monitoring
Door position switch
Bolt position indicator

Versatile Installation
Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Auto Relock Function
Can be set for 0,3,6 or 9 seconds
