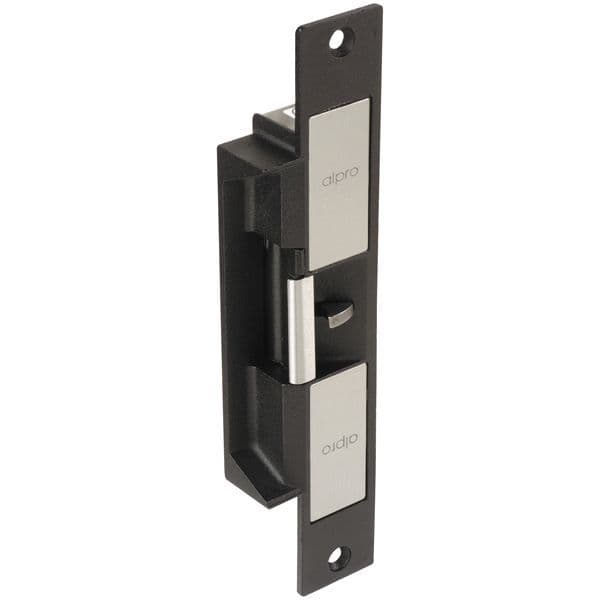

Alpro Electric Monitored Strikes AL2000

The AL2000 is a high security monitored electric strike designed for timber and metal door applications.

The AL2000 electric door strike is 12/24v selectable with a stainless steel one part body & striker,  It has a 26mm overall depth, compact shallow body.

An unmonitored version also available.

Features Include

• High Hold Force
• High Security
• Weather Resistant
• Simple Fail Safe/Fail Secure Changeover
• 6 Year Guarantee
• Specification
• Order info
• Documents
• FAQs

12/24v Selectable

High Security
Stainless steel one part body and striker

Monitoring
Latch and door monitoring
Anti-tamper monitoring

Compact Shallow Body
26mm overall depth

Fixing Tab Options
Single fixing for metal

Low Current Consumption
220mA - 12v DC continuous (±15%)
110mA - 24v DC continuous (±15%)

Simple Fail Safe/Fail Secure Changeover

Easy Installation
Stick on / peel off template

Weather Resistant
IP56 Protection as standard

Options
Extension lips – 15, 25, 50 and 75mm (pre-drilled strike body)

Spares
Replacement changeover pin

Approvals
EN61000-6-3:2007
EN50130-4:1995 + A1
EN50130-4:1998 + A2
EN50130-4:2003

AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation with AC voltages. The sounder can be set for either buzzing or silence with both AC and DC voltages. The IEC RM1 unit is continuously rated – max 1 amp
