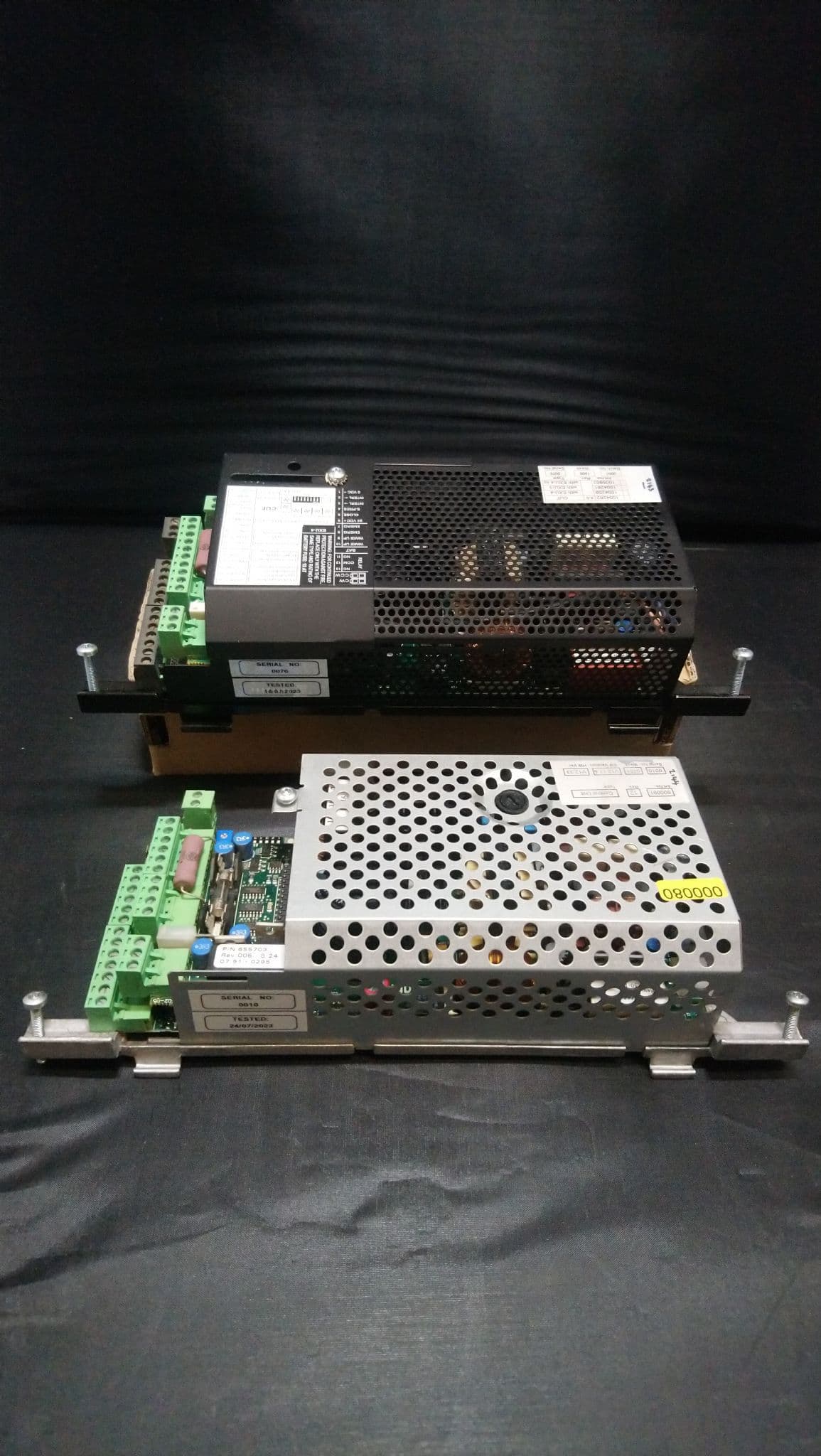

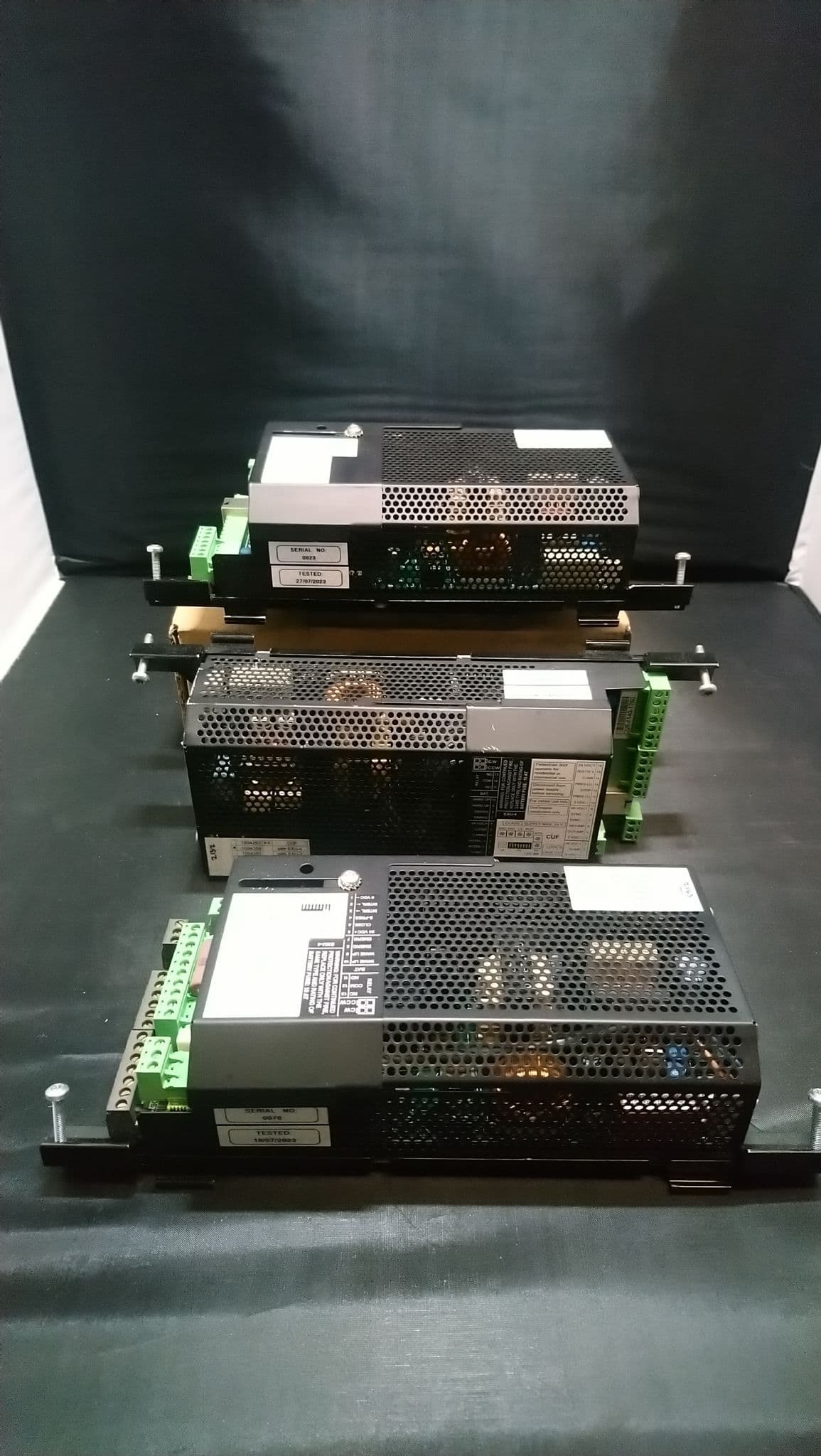

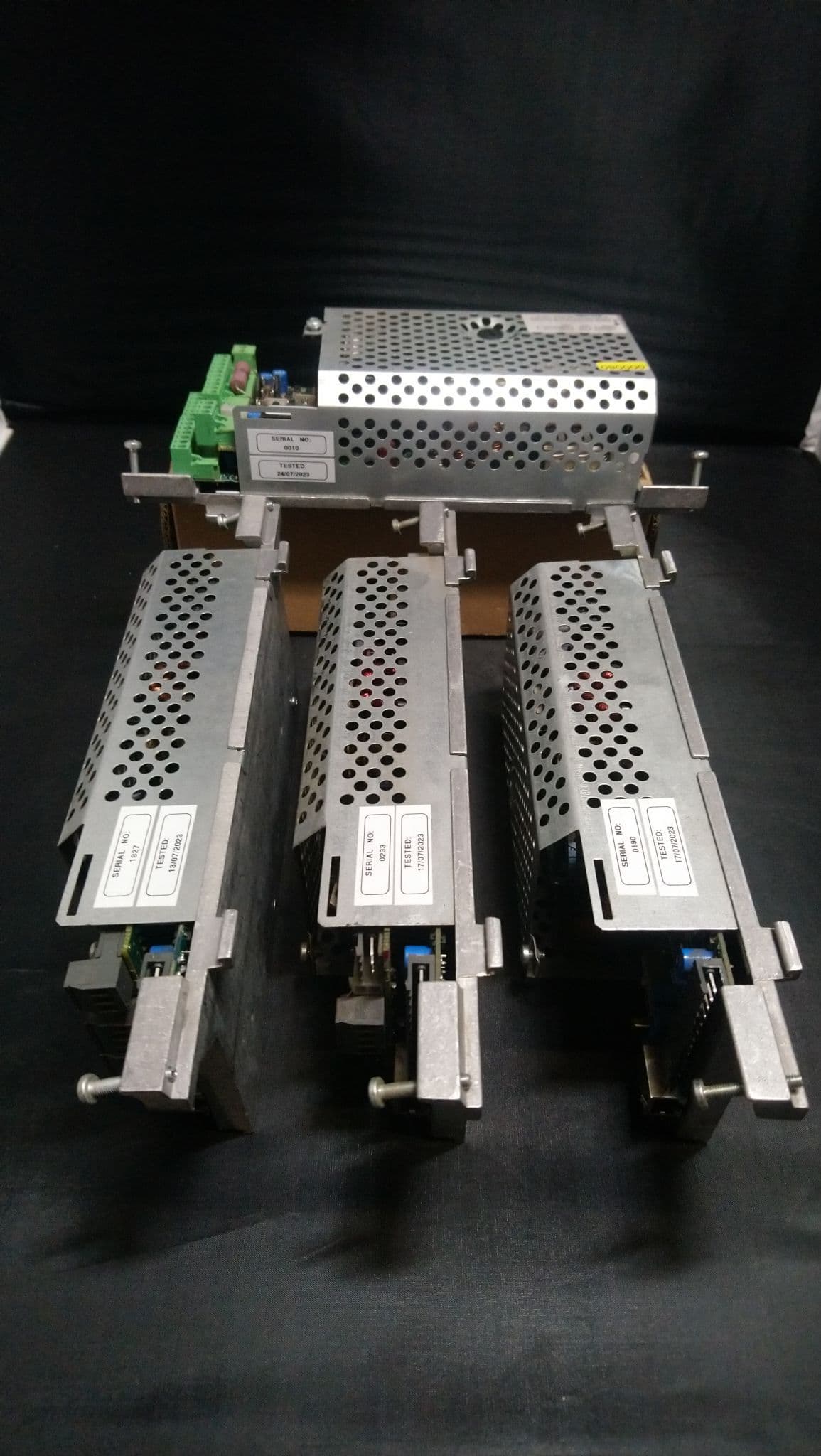

Besam EMSL

Technical Specifications:

Mains power supply 100 V AC -15% to 240 V AC +10% 50/60 Hz, 3 Amp

Note! Switch with clearly marked off-position, having a contact separation of at least 3 mm (1/8") in all poles, must be incorporated.

Power consumption max. 250 W

Auxiliary voltage 24 V DC, 0.64 Amp (640 mA)

Control unit fuse 6.3 Amp (6,3 AT)

Recommended max. door weight Bi-parting UniSlide-2 100 kg/leaf (220 lb./leaf) Single Slide UniSlide-R/L 200 kg (440 lb.) Clear opening Bi-parting UniSlide-2: 900 – 2400 mm (35.5" – 94.5") [optional up to 2800 mm (110")] Single Slide UniSlide-R/L: 900 – 2000 mm (35.5" – 78.5") [optional up to 2800 mm (110")] *Opening and closing speed Bi-parting (UniSlide -2) variable up to approx. 1.4 m/s (4.5 ft/sec.) *Hold open time 0-60 seconds Ambient temperature -20°C to +50°C (-4°F to 122°F) [-35°C to +50°C (-31°F to 122°F) with silicone belt] Relative humidity 5%-85% (non-condensing) To be installed internally or with suitable weather protection externally. * To be adjusted to comply with ANSI/BHMA A156.10. Note that local codes may vary. Note! The glazing material of all doors shall comply with the requirements in the American National Standard Performance Specification and Methods of Test for Safety Glazing Material Used in Buildings, Z97.1-1975

Service: (Includes) :

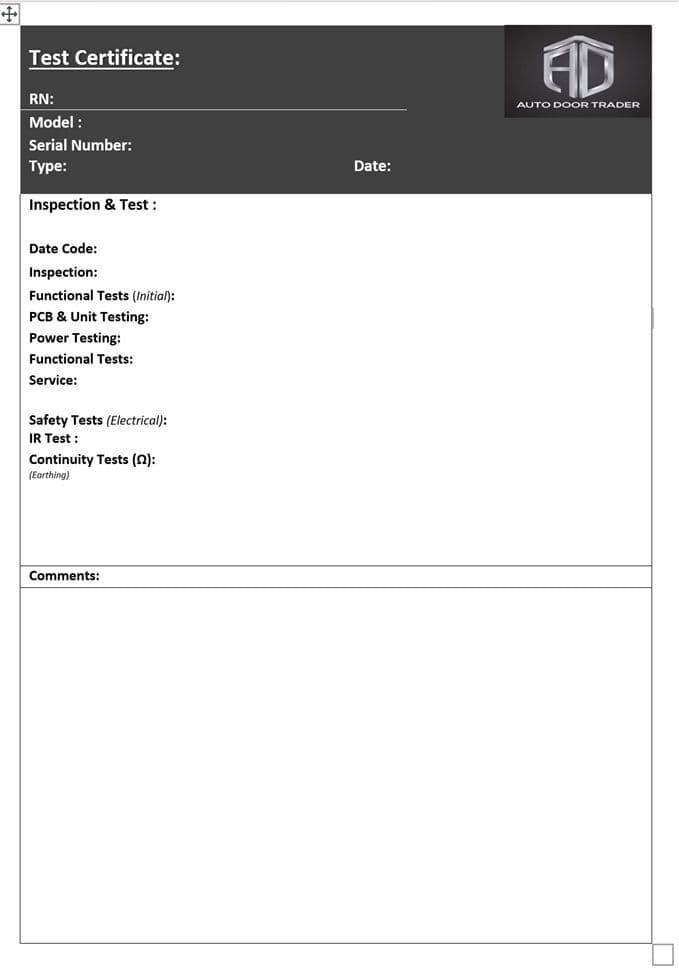

Component checks & replacement (as required), replacement of capacitors (as required), inspection & test of unit.

For Further Information: Please Contact

0161 477 0415
hello@autodoortrader.co.uk

Common Failures: PWM, Capacitors, O/P FET Drive, Relay, Trimmers, PSU Circuit & FETs, Rectifiers.

Less common: PSU Opto Coupler & PWM, Logic circuit, Transformer,
