Information
Characteristics
Maximum capacity 80 kg x 1.0 m

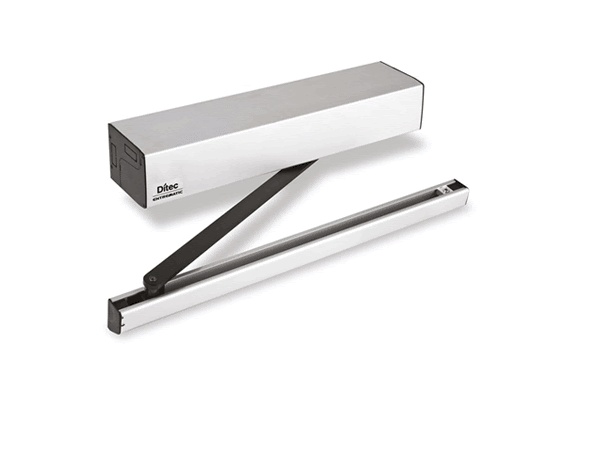

Automation for swing doors
opening and closing by motor,
with encoder
Service index 5 – heavy duty
Lifecycle 1,000,000 cycles
Protection rating
IP30, Class II
(plastic version)
Temperature -20 °C + 55 °C
Opening time 3 ÷ 6 s/90° (adjustable)
Closing time 4 ÷ 7 s/90° (adjustable)
Hold open time 30 s
Product dimensions (mm) 79x93x450
Arm is included with product.
Maximum capacity 80 kg x 1.0 m
Automation for swing doors
opening and closing by motor,
with encoder
Service index 5 – heavy duty
Lifecycle 1,000,000 cycles
Protection rating
IP30, Class II
(plastic version)
Temperature -20 °C + 55 °C
Opening time 3 ÷ 6 s/90° (adjustable)
Closing time 4 ÷ 7 s/90° (adjustable)
Hold open time 30 s
Product dimensions (mm) 79x93x450
Arm is included with product.
