Information

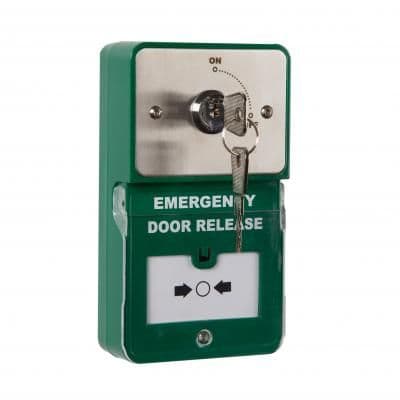

Dual Unit -Keyswitch (override On/Off) and combined Emergency Release Button (resettable) surface mounted, includes back box with security screws. Buzzer and LED indication with three voltage free contacts (TRIPLE POLE). Greater than 1m operations. EDR -IP24 Size 160h x 90w x 63d (all mm)
Where a Keyswitch override is required and Emergency Release button is required. Single fixing and wiring point and can be retro fitted on a single gang back box Supply 12vdc @ 15mA 24vdc @ 10mA Selectable 4 Amp @ 30vac/d
