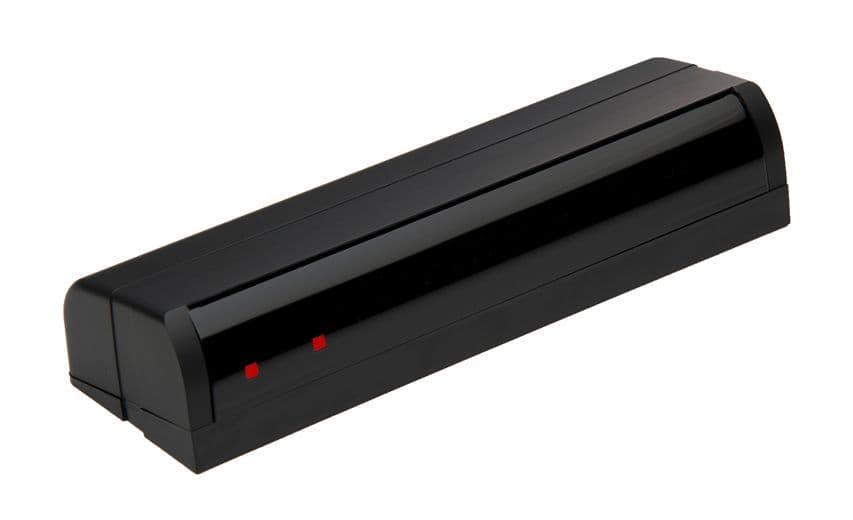

Hotron HR100-CT/BL
Special offer! limited time only
Model HR100-CT Dual Relay Output Pedestrian Door Activation + Monitored Safety Detection Method Active Infrared Detection Installation Height 2000mm to 3000mm (6.5ft to 10ft) Sensor Dimensions 230mm (W), 70mm (H), 44mm (D) Pattern Adjustment Width Adjustment: Inner 3 rows Wide or Narrow Width Adjustment: Outer 2 rows Wide or Narrow Depth Adjustment: Inner 3 rows 0° - 8° Depth Adjustment: Outer 2 rows 0° - 10° Depth Adjustment: 1 to 5 rows of detection (Dip Switch) Presence Timer 2sec, 30sec, 1min and infi nity (Inner 3 rows) 1sec (Outer 2 rows) IP Rating 54 Power Supply 12 to 24V AC or DC ± 10% Power Consumption AC12V-2.1 [VA] (Max), DC12V-110 [mA] (Max) AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max) Output Open Collector 7.5 [mA] (Min) Resistor Load Relay Hold Time Approx. 0.5 sec LED Indication Green Standby Blue ROW 4,5 Detecting Red ROW 1,2,3 Detecting Operating Temperature -20°C to +60°C, (-4°F to 140°F) Weight 250g (0.55 lbs) Available Colours Black: Product Code = HR100-CT/BL Silver: Product Code = HR100-CT/S Accessories Provided 2.5m Connection Cable, Mounting Template, Mounting Screws, Installation Instructions
Special offer! limited time only
Model HR100-CT Dual Relay Output Pedestrian Door Activation + Monitored Safety Detection Method Active Infrared Detection Installation Height 2000mm to 3000mm (6.5ft to 10ft) Sensor Dimensions 230mm (W), 70mm (H), 44mm (D) Pattern Adjustment Width Adjustment: Inner 3 rows Wide or Narrow Width Adjustment: Outer 2 rows Wide or Narrow Depth Adjustment: Inner 3 rows 0° - 8° Depth Adjustment: Outer 2 rows 0° - 10° Depth Adjustment: 1 to 5 rows of detection (Dip Switch) Presence Timer 2sec, 30sec, 1min and infi nity (Inner 3 rows) 1sec (Outer 2 rows) IP Rating 54 Power Supply 12 to 24V AC or DC ± 10% Power Consumption AC12V-2.1 [VA] (Max), DC12V-110 [mA] (Max) AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max) Output Open Collector 7.5 [mA] (Min) Resistor Load Relay Hold Time Approx. 0.5 sec LED Indication Green Standby Blue ROW 4,5 Detecting Red ROW 1,2,3 Detecting Operating Temperature -20°C to +60°C, (-4°F to 140°F) Weight 250g (0.55 lbs) Available Colours Black: Product Code = HR100-CT/BL Silver: Product Code = HR100-CT/S Accessories Provided 2.5m Connection Cable, Mounting Template, Mounting Screws, Installation Instructions
Specifications
-
Condition:New
