Information
5 core cable
Old type none monitored

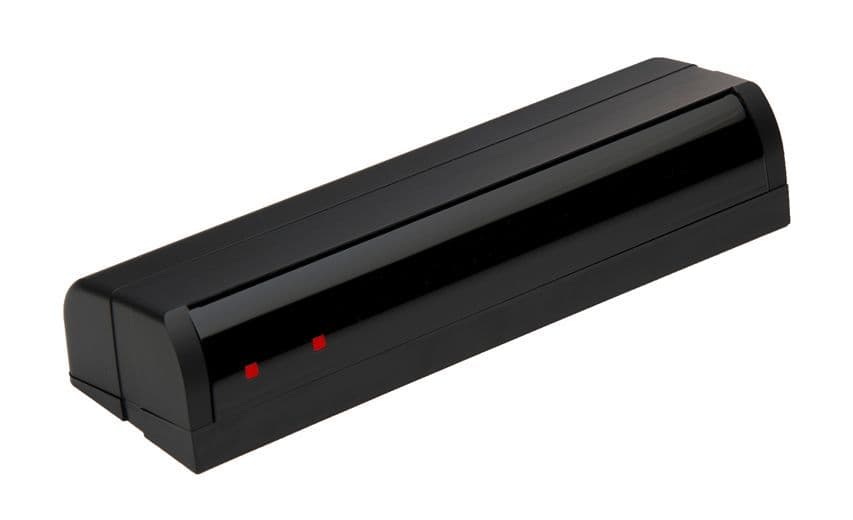

HR100: (Single Relay) Pedestrian Door Activation + Safety
Detection Method:
Active Infrared Detection
Installation height:
2000mm to 3000mm (6.5ft to 10ft)
Sensor Dimensions:
230mm (W), 70mm (H), 44mm (D)
Presence Timer: 2s, 15s, 1min and infinity (Inner 3 rows) 2sec and 15sec (Outer 2 rows)
IP Rating 54
12 to 24V AC or DC ± 10%AC12V-1.7 [VA] (Max), DC12V-110 [mA] (Max) AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max)
-20°C to +60°C, (-4°F to 140°F)
250g (0.55 lbs)
HR100/BL
Old type none monitored
HR100: (Single Relay) Pedestrian Door Activation + Safety
Detection Method:
Active Infrared Detection
Installation height:
2000mm to 3000mm (6.5ft to 10ft)
Sensor Dimensions:
230mm (W), 70mm (H), 44mm (D)
Presence Timer: 2s, 15s, 1min and infinity (Inner 3 rows) 2sec and 15sec (Outer 2 rows)
IP Rating 54
12 to 24V AC or DC ± 10%AC12V-1.7 [VA] (Max), DC12V-110 [mA] (Max) AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max)
-20°C to +60°C, (-4°F to 140°F)
250g (0.55 lbs)
HR100/BL
Specifications
-
Condition:New
