Information

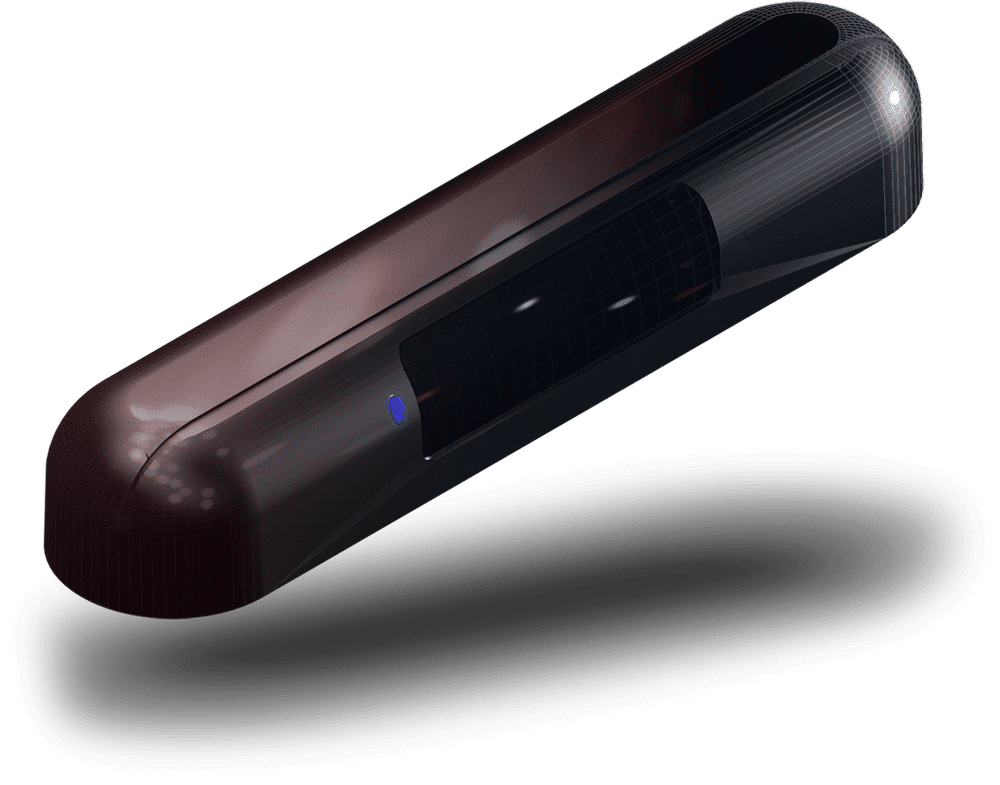

Hotron SSR-3/BL
| Model | SSR-3 Dual Relay Output Pedestrian Door Activation + Monitored Safety | |
|---|---|---|
| Detection Method | Microwave Motion Detection 24GHz band + Active Infrared Detection | |
| Installation Height | 3.2m (10.50ft) Max | |
| Sensor Dimensions | 265mm (W), 60mm (H), 43mm (D) | |
| Depth Adjustment | Active Infrared 3 rows -8° ~ +4° (Screw) Microwave Antenna Adjustment up/down +15° ~ +45° in 3° steps Microwave Sensitivity Adjustment (Potentiometer) |
|
| Width Adjustment | Active Infrared Wide / Narrow (Area Mask) | |
| Response Time | 0.1s ~ 0.2s | |
| Presence Timer | 2s / 30s / 60s / ∞ (Active Infrared 3 rows) | |
| Frequency | 4 Frequencies (Dip Switch) | |
| Monitor Mode | Normal / Snow (Dip Switch) | |
| Doorway Learn | ON / OFF (Dip Switch) | |
| Direction Detection | ON / OFF (Dip Switch) | |
| Sensitivity Adjustment | Available (Potentiometer) | |
| LED Indication | Standby : Green Doorway Learning (When dip switch Y 5 is ON) : Green Blinking RADAR Detecting : Blue IR. Detecting / RADAR and IR. Detecting : Red Detection row “ROW1”(“ROW2” when doorway Learning is turned ON) is detecting door movement : Orange Indicates a change of dip switch settings : Orange Blinking (Fast) Door Hold is turned ON (When dip switch Y 4 is ON) : Orange Blinking (Slow) Internal Sensor Error : Green & Red Blinking (Fast) Reflected infrared signal from the floor is very low : Green & Red Blinking (Slow) |
|
| Power Supply | AC/DC 12 ~ 24V ±10% | |
| Power Consumption | AC12V : 2.5VA Max, AC24V : 2.5VA Max DC12V : 150mA Max, DC24V : 80mA Max |
|
| Output | IR. | Opto Relay Non Polar Voltage : 48VDC Max. Current : 300mA Max. (Resistor Load) |
| RADAR | Form A Relay DC50V 0.1A (Resistor Load) | |
| Test Input | 6mA Max. @ 24VDC | |
| Output Holding Time | Active Infrared : Approx. 0.5s Microwave : Approx. 1.5s |
|
| Operating Temperature | -20°C ~ +60°C, (-4°F ~ +140°F) | |
| Operating Humidity | Below 80% | |
| IP Rating | IP54 | |
| Weight | Approx. 260g (0.56 lbs) | |
| Color | S : Silver, BL : Black | |
| Accessories Provided | Cable, Mounting Template, Mounting Screws, Installation Instructions, Detection Area Mask | |
Specifications
-
Condition:New
