LABEL NEXT 75 can drive doors with maximum weight 75kg for a length of 1000mm. The cover is made of anodised aluminium that enhances the look of the automation

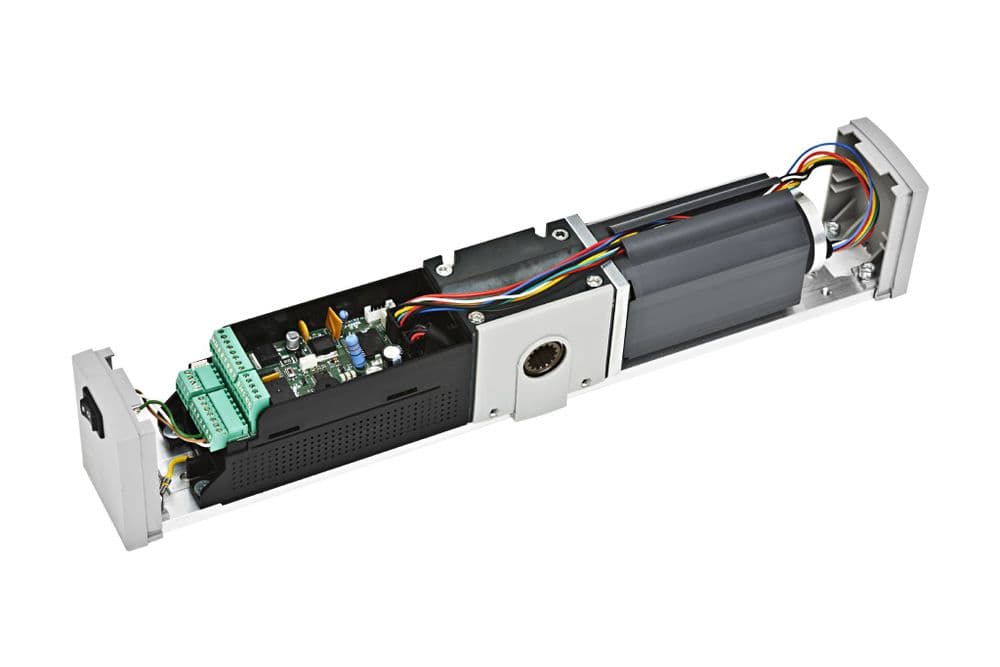

Inside the NEXT 75 there is a brush-less motor with encoder that ensures very low wear due to the absence of brushes is very durable, an electronic control unit with the latest generation components, to provide excellent performance and reliability and a switching power supply to ensure efficiency and low power consumption. On request it is available the built-in emergency battery to ensure the operation of the NEXT 75 in case of a blackout.
Door opening can be controlled by sensors, radio control,or by simple touch in push and go mode. The door can also be used manually with the possibility of re-closing thanks to the virtual spring function. Door motion is safe thanks to the encoder which detects with precision the position of the door and immediately reverse the motion of the door in the event of an obstacle.
NEW BRUSHLESS MOTOR
At the heart of our system the new digital motor is able to minimise consumption both during operation and in stand-by mode
INTEGRATED BATTERY DESIGN
A unique integrated design to keep the next as small as possible, the backup battery packs are designed to fit perfectly around the new brushless motor
For automation commissioning, the installer must use the digital programmer.in a few easy steps he can setup the automation and select the desired functions.
Alternatively, you can also setup next 75 also by means of the new NFC digital keyboard the allows interfacing and data exchange via a smart phone using the NEW LABEL APP
