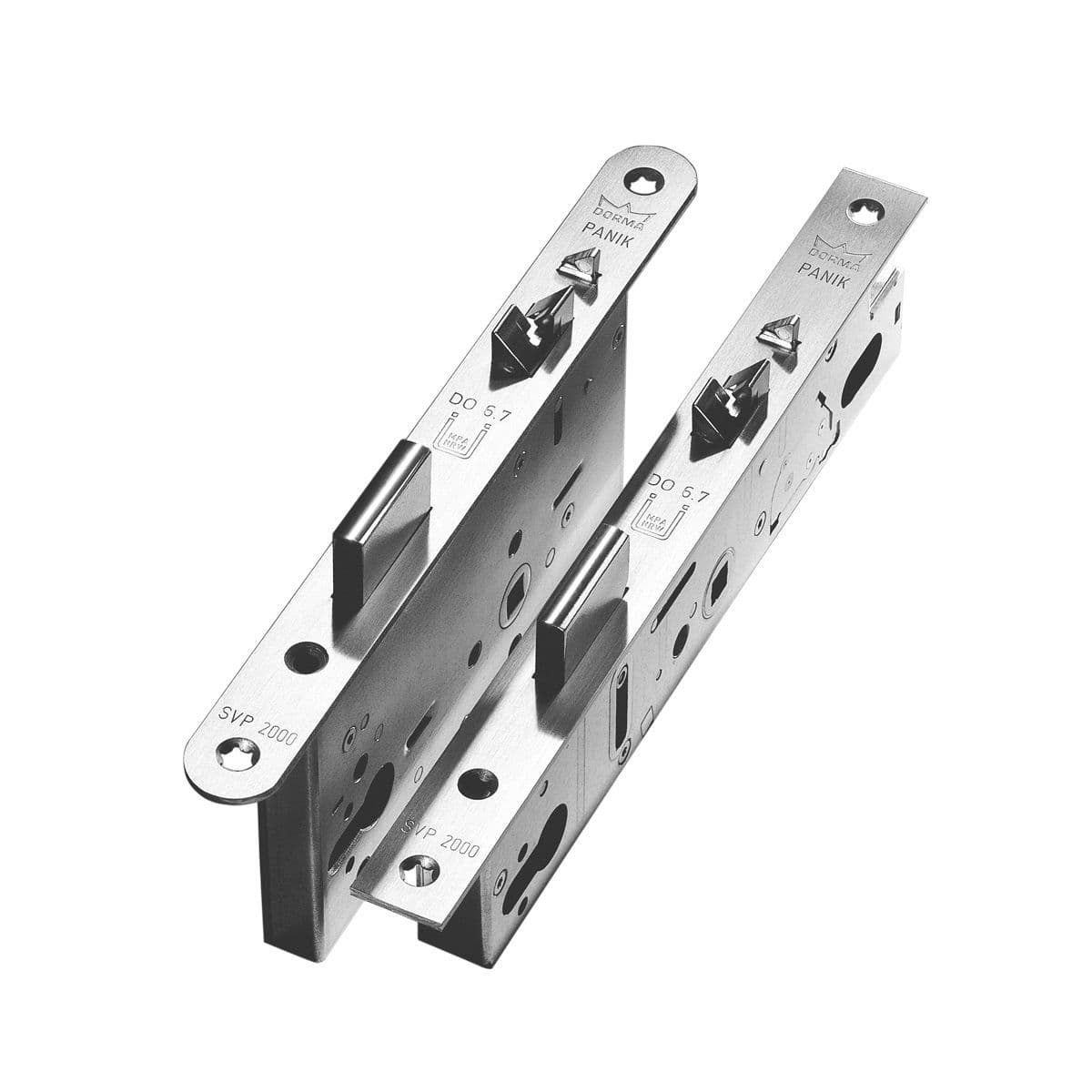

Emergency escape motor lock with automatic locking, with optimized mechanical and electrical sequential control (anti-tamper protection) and status control via LED. For operation via analog, CAN-bus or external SVP-S- 4x or ED Operator over DCW Duisburg function:compatible with electronic and free-turning cylinders. With 5 micro-switches for detection of locked (> 90 %), unlocked (< 10 % of the deadbolt shoot), follower operation, trigger latch and cylinder. Two-point mechanical Locking activated by preloaded spring after door closes. Universal trip latch, 235 x 24 mm forend versions non-handed. Emergency unlocking by lever handle or panic devices according to EN 179, 1125. Tested in accordance with EN 14846. Certfiire Approved CF5342 Steel bolt projection 20 mm - 9 mm squared follower. Corrosionprotected Lock case, stainless steel forend and strike plate. 24 V DC - Fail Secure. 24mm SSS
