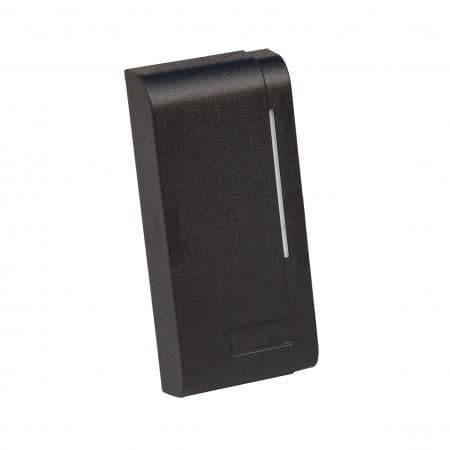

WIEGAND READER

£36.62
£43.94 (inc. VAT)
You will earn 43 points with this purchase
Information

RD26-C

Technical specifications

  • High impact plastic reader for external use
  • Fully encapsulated to IP65
  • 9-12VDC @max 50Ma
  • 26 bit EM formatted reader
  • Wiegand 4 wire connection
  • Card read time of 120mS
  • Operating frequency 125kHz
  • Maximum transfer distance of 100m (screened cable)
  • Operating temperature -20c to 60c

Features:

  • Small compact design
  • Led indication
  • Weather resistant
  • Simple wiring to controller
  • Encapsulated electronics
  • Choice of cards or fobs
  • Compatible with Wiegand type controllers
  • To work with the RGL KPX2000 and PX2000

Dimensions: 100x43x20 (mm)
